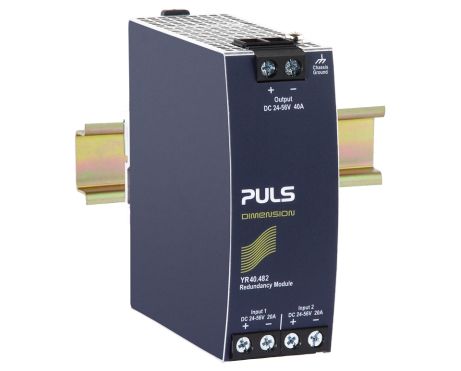

YR40.482
MOSFET冗余模块
24 V, 40 A 2路20A输入, 适用于DIMENSION 概念型电源
数据表
24 V, 40 A 2路20A输入, 适用于DIMENSION 概念型电源
| DC 输出 | 24 - 56 Vdc |
|---|---|
| 40 A | |
| 输入 | DC 24 V - 56 V |
| 尺寸（宽x高x深） | 46 x 124 x 127 mm |
| 重量 | 360 g |
输入数据
| 输入电流 | 2 x 20 A |
|---|---|
| 每路输入的额定电流 | 20 A |
| DC输入电压 | DC 24 V - 56 V |
| 电压跌落 | 60 mV |
输出数据
| 输出电流范围 | 40 A |
|---|---|
| 输出电流 | 40 A |
| 短路时的输出电流，最大值 | 45 A |
| 降额 | 1 W/°C 为 >+60 °C |
概述
| 尺寸（宽x高x深） | 46 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 360 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -40 °C 至 70 °C |
| 连接端子类型 | 螺丝式接线端子 |
| 功率损耗，典型值 | 1.8 W |
| 空载损耗，典型值 | 0.62 W |
| MTBF SN 29500 @ 40 °C (h) | 4100000 h |
