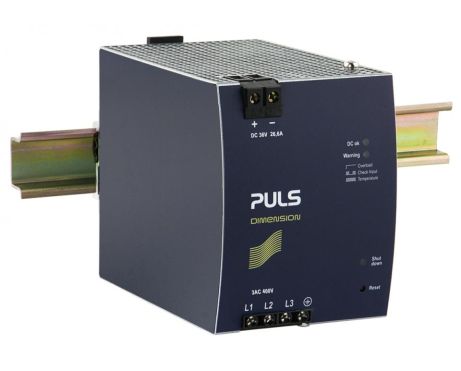

XT40.361
三相系统的DIN导轨电源
36 V, 26.6 A 半调节
数据表
36 V, 26.6 A 半调节
| DC 输出 | 36 Vdc |
|---|---|
| 26.6 A | |
| 960 W | |
| 输入 | AC 400 V (± 15 %) |
| 尺寸（宽x高x深） | 96 x 124 x 159 mm |
| 重量 | 1400 g |
输入数据
| AC输入电压 | AC 400 V (± 15 %) |
|---|---|
| 谐波校正 | 主动式 |
| 功率因数 | 0.93 |
| 输入浪涌电流抑制 | 主动式 |
| 输入浪涌电流 | 2 A |
| 外部输入保险丝推荐 | B-6 A / C-3 A |
输出数据
| 额定电压 | 36 Vdc |
|---|---|
| 调压范围 | 36 V |
| 输出电流范围 | 26.6 A |
| 输出电流 | 26.6 A 当 36 V |
| 输出功率 | 960 W |
| 功率储备 | 25 % 功率储备 |
| 降额 | 24 W/°C 为 >+60 °C |
| 电压纹波与噪声 最大值 | 2000 mVpp |
概述
| 尺寸（宽x高x深） | 96 mm x 124 mm x 159 mm |
|---|---|
| Weight per unit (excl. packaging) | 1400 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | 螺丝式接线端子 |
| 转换效率，典型值 | 95.5 % |
| 功率损耗，典型值 | 45.2 W |
| MTBF SN 29500 @ 40 °C (h) | 529000 h |
