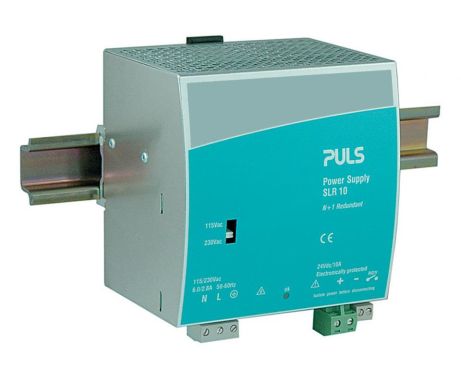

SLR10.108
冗余电源
24 V, 8 A 含冗余功能的解耦二极管
数据表
24 V, 8 A 含冗余功能的解耦二极管
| DC 输出 | 24 Vdc |
|---|---|
| 8 A | |
| 196 W | |
| 输入 | AC 100 - 120 / 210 - 240 V |
| 尺寸（宽x高x深） | 120 x 124 x 102 mm |
| 重量 | 980 g |
输入数据
| AC输入电压 | AC 100 - 120 / 210 - 240 V |
|---|
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 V |
| 输出电流范围 | 8 A |
| 输出电流 | 8 A 当 24 V |
| 输出功率 | 196 W |
| 电压纹波与噪声 最大值 | 30 mVpp |
概述
| 尺寸（宽x高x深） | 120 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 980 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | 0 °C 至 70 °C |
| 连接端子类型 | 插头 |
| 转换效率，典型值 | 90 % |
| 功率损耗，典型值 | 21.3 W |
| MTBF SN 29500 @ 40 °C (h) | 390000 h |
