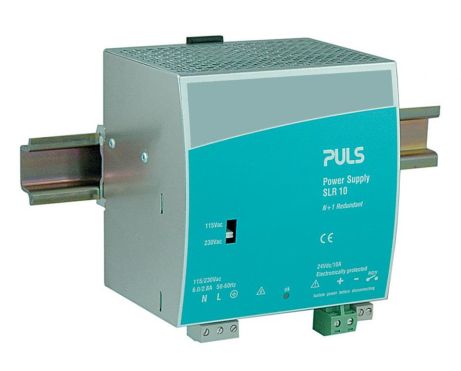

SLR10.100

冗余电源
24V, 10A
含冗余功能的解耦二极管
数据表
DC 输出 24Vdc
10A
240W
输入 AC 100 - 120 / 210 - 240V
尺寸(宽x高x深) 120 x 124 x 102mm
重量 980g
对比

输入数据

AC输入电压 AC 100 - 120 / 210 - 240V

输出数据

额定电压 24Vdc
调压范围 24V
输出电流范围 10A
输出电流 10A 当 24V
输出功率 240W
降额 12W/°C 为 >+60°C
电压纹波与噪声 最大值 30mVpp

概述

尺寸(宽x高x深) 120mm x 124mm x 102mm
Weight per unit (excl. packaging) 980g
安装方式 DIN导轨
工作温度范围 0°C 至 70°C
连接端子类型 插头
转换效率,典型值 89%
功率损耗,典型值 26.7W
平均无故障时间 SN 29500 @ 40°C (h) 390000h
