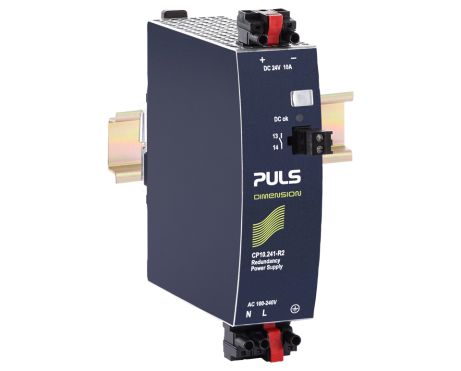

CP10.241-R2

新建
冗余电源
24V, 10A
热插拔插头
数据表
DC 输出 24Vdc
10A
240W
输入 AC 100 - 240V (-15%/+10%)
DC 110V - 150V (± 20%)
体积 39 x 124 x 117mm
重量 600g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (-15%/+10%)
DC输入电压 DC 110V - 150V (± 20%)
谐波校正 主动式
功率因数 0.97
输入浪涌电流抑制 主动式
输入浪涌电流 6A / 9A
外部输入保险丝推荐 B-6A / C-6A

输出数据

额定电压 24Vdc
调压范围 24V
输出电流范围 10A
输出电流 10A 当 24V
输出功率 240W
功率储备 20% 额外功率
电压纹波与噪声 最大值 50mVpp

概述

体积 39mm x 124mm x 117mm
每台的重量(净重) 600g
工作温度范围 -25°C 至 70°C
降额 6W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 94.7%
功率损耗,典型值 13.4W
平均无故障时间 SN 29500 @ 40°C (h) 641000h
连接端子类型 插头
DC-OK信号
