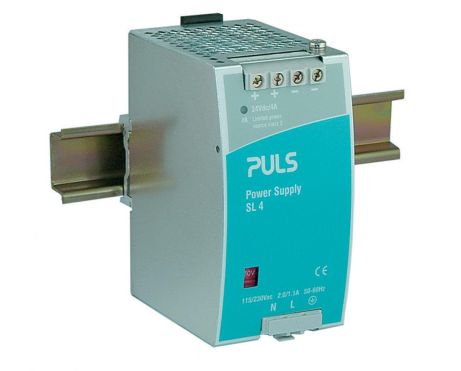

SL4.100
单相系统的DIN导轨电源
24 V, 4 A
数据表
24 V, 4 A
| DC 输出 | 24 - 24 Vdc |
|---|---|
| 4 A | |
| 96 W | |
| 输入 | AC 100 - 120 / 200 - 240 V |
| DC 300 V (-20 %/+25 %) | |
| 尺寸（宽x高x深） | 64 x 124 x 103 mm |
| 重量 | 620 g |
输入数据
| AC输入电压 | AC 100 - 120 / 200 - 240 V |
|---|---|
| DC输入电压 | DC 300 V (-20 %/+25 %) |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 24 V |
| 输出电流范围 | 4 A |
| 输出电流 | 24 V |
| 4 A 当 24 V | |
| 输出功率 | 96 W |
| 电压纹波与噪声 最大值 | 25 mVpp |
概述
| 尺寸（宽x高x深） | 64 mm x 124 mm x 103 mm |
|---|---|
| Weight per unit (excl. packaging) | 620 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 螺丝式接线端子 |
