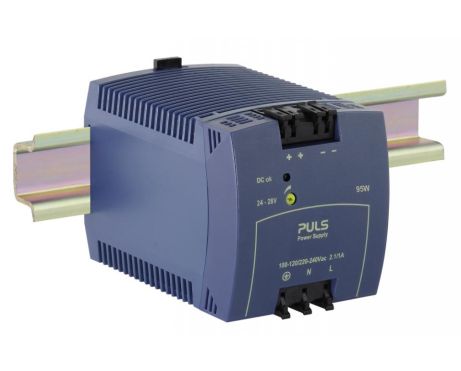

24V, 3.9A NEC Class 2
|DC 输出||24 - 28Vdc|
|4 - 3.4A|
|输入||AC 100 - 120 / 220 - 240V (-15%/+10%)|
|DC 290V (-25%/+30%)|
|尺寸（宽x高x深）||73 x 75 x 103mm|
|AC输入电压||AC 100 - 120 / 220 - 240V (-15%/+10%)|
|DC输入电压||DC 290V (-25%/+30%)|
|输入浪涌电流||22A / 37A|
|外部输入保险丝推荐||B-10A / C-6A|
|调压范围||24 - 28V|
|输出电流范围||4 - 3.4A|
|输出电流||3.4A 当 28V|
|4A 当 24V|
|降额||2W/°C 为 >+60°C|
|尺寸（宽x高x深）||73mm x 75mm x 103mm|
|Weight per unit (excl. packaging)||360g|
|平均无故障时间 SN 29500 @ 40°C (h)||500000h|
