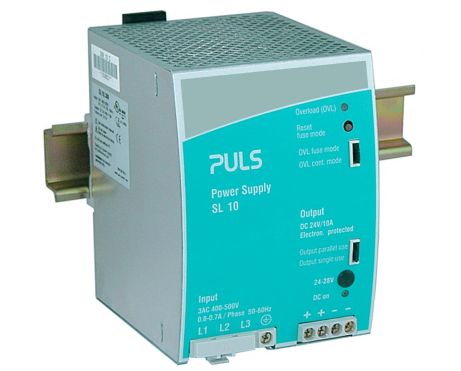

SL10.309
三相系统的DIN导轨电源
24 V, 10 A 保护面漆
数据表
24 V, 10 A 保护面漆
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 10 - 8.6 A | |
| 240 W | |
| 输入 | AC 400 - 500 V |
| 尺寸（宽x高x深） | 89 x 124 x 117 mm |
| 重量 | 980 g |
输入数据
| AC输入电压 | AC 400 - 500 V |
|---|
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 10 - 8.6 A |
| 输出电流 | 8.6 A 当 28 V |
| 10 A 当 24 V | |
| 输出功率 | 240 W |
| 功率储备 | 20 % |
| 电压纹波与噪声 最大值 | 30 mVpp |
概述
| 尺寸（宽x高x深） | 89 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 980 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 螺丝式接线端子 |
| 转换效率，典型值 | 91.9 % |
| 转换效率，典型值 | 92.1 % |
