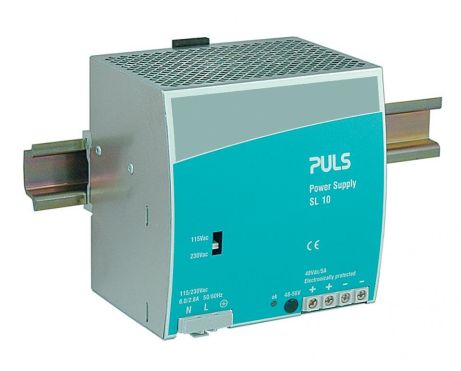

SL10.106

单相系统的DIN导轨电源
48 V, 5 A
带被动式PFC电感
数据表
DC 输出 48 - 56 Vdc
5 - 4.3 A
240 W
输入 AC 100 - 120 / 210 - 240 V
尺寸(宽x高x深) 120 x 124 x 102 mm
重量 1195 g
对比

输入数据

AC输入电压 AC 100 - 120 / 210 - 240 V

输出数据

额定电压 48 Vdc
调压范围 48 - 56 V
输出电流范围 5 - 4.3 A
输出电流 4.3 A 当 56 V
5 A 当 48 V
输出功率 240 W
电压纹波与噪声 最大值 50 mVpp

概述

尺寸(宽x高x深) 120 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 1195 g
安装方式 DIN导轨
连接端子类型 螺丝式接线端子
