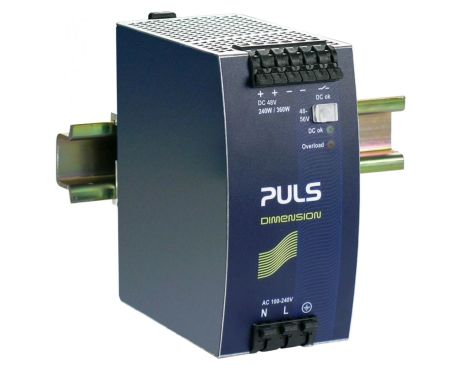

QS10.481
48 V, 5 A
DC 输出 | 48 - 56 Vdc |
---|---|
5 - 4.3 A | |
240 W | |
输入 | AC 100 - 240 V (± 15 %) |
DC 110 V - 150 V (-20 %/+25 %) | |
尺寸(宽x高x深) | 60 x 124 x 117 mm |
重量 | 900 g |
输入数据
AC输入电压 | AC 100 - 240 V (± 15 %) |
---|---|
DC输入电压 | DC 110 V - 150 V (-20 %/+25 %) |
谐波校正 | 主动式 |
功率因数 | 0.92 |
输入浪涌电流抑制 | 主动式 |
输入浪涌电流 | 4 A / 7 A |
外部输入保险丝推荐 | B-6 A / C-4 A |
输出数据
额定电压 | 48 Vdc |
---|---|
调压范围 | 48 - 56 V |
输出电流范围 | 5 - 4.3 A |
输出电流 | 4.3 A 当 56 V |
5 A 当 48 V | |
输出功率 | 240 W |
功率储备 | 50 % 峰值功率 |
降额 | 6 W/°C 为 >+60 °C |
电压纹波与噪声 最大值 | 100 mVpp |
概述
尺寸(宽x高x深) | 60 mm x 124 mm x 117 mm |
---|---|
Weight per unit (excl. packaging) | 900 g |
安装方式 | DIN导轨 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 弹压式接线端子 |
转换效率,典型值 | 92 % |
功率损耗,典型值 | 20.9 W |
MTBF SN 29500 @ 40 °C (h) | 606000 h |
DC-OK信号 | 有 |
