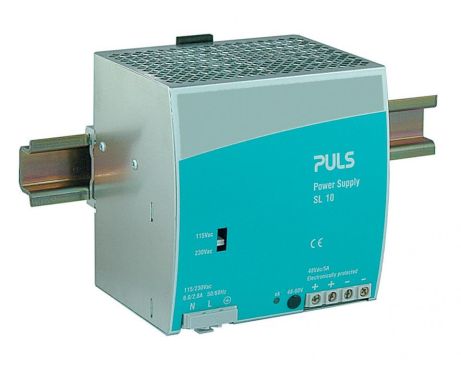

SL10.101

单相系统的DIN导轨电源
48V, 5A
数据表
DC 输出 48 - 56Vdc
5 - 4.3A
240W
输入 AC 100 - 120 / 210 - 240V
尺寸(宽x高x深) 120 x 124 x 102mm
重量 980g
对比
产品状态: 停产

该产品已下架

输入数据

AC输入电压 AC 100 - 120 / 210 - 240V

输出数据

额定电压 48Vdc
调压范围 48 - 56V
输出电流范围 5 - 4.3A
输出电流 4.3A 当 56V
5A 当 48V
输出功率 240W
电压纹波与噪声 最大值 50mVpp

概述

尺寸(宽x高x深) 120mm x 124mm x 102mm
每台的重量(净重) 980g
安装方式 DIN导轨
转换效率,典型值 1%
连接端子类型 螺丝式接线端子
