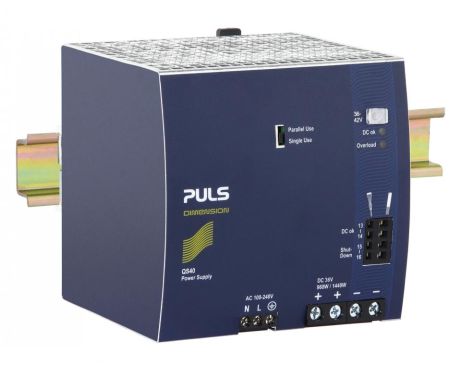

36V, 26.7A
DC 输出 36 - 42Vdc
26.7 - 22.9A
输入 AC 100 - 240V (-15%/+10%)
体积 125 x 124 x 127mm
重量 1900g
产品状态: 常备库存


AC输入电压 AC 100 - 240V (-15%/+10%)
谐波校正 主动式
功率因数 0.99
输入浪涌电流抑制 主动式
输入浪涌电流 17A / 11A
外部输入保险丝推荐 B-16A / C-10A


额定电压 36Vdc
调压范围 36 - 42V
输出电流范围 26.7 - 22.9A
输出电流 22.9A 当 42V
26.7A 当 36V
输出功率 960W
功率储备 50% 峰值功率
电压纹波与噪声 最大值 130mVpp


体积 125mm x 124mm x 127mm
每台的重量(净重) 1900g
工作温度范围 -25°C 至 70°C
降额 24W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 94.6%
功率损耗,典型值 54.8W
平均无故障时间 SN 29500 @ 40°C (h) 300000h
连接端子类型 螺丝式接线端子
