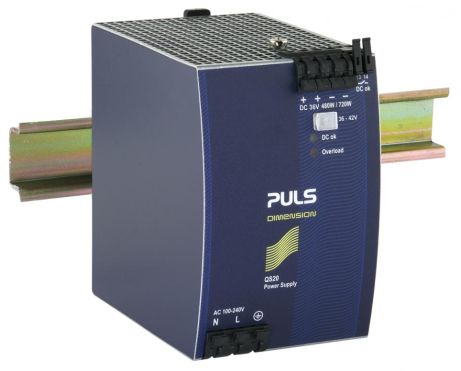

36V, 13.3A
DC 输出 36 - 42Vdc
13.3 - 11.4A
输入 AC 100 - 240V (± 15%)
DC 110V - 150V (-20%/+25%)
体积 82 x 124 x 127mm
重量 1200g
产品状态: 常备库存


AC输入电压 AC 100 - 240V (± 15%)
DC输入电压 DC 110V - 150V (-20%/+25%)
谐波校正 主动式
功率因数 0.9
输入浪涌电流抑制 主动式
输入浪涌电流 9A / 7A
外部输入保险丝推荐 B-10A / C-10A


额定电压 36Vdc
调压范围 36 - 42V
输出电流范围 13.3 - 11.4A
输出电流 11.4A 当 42V
13.3A 当 36V
输出功率 480W
功率储备 50% 峰值功率
电压纹波与噪声 最大值 100mVpp


体积 82mm x 124mm x 127mm
每台的重量(净重) 1200g
工作温度范围 -25°C 至 70°C
降额 12W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 94%
功率损耗,典型值 30.6W
平均无故障时间 SN 29500 @ 40°C (h) 469000h
连接端子类型 弹压式接线端子
