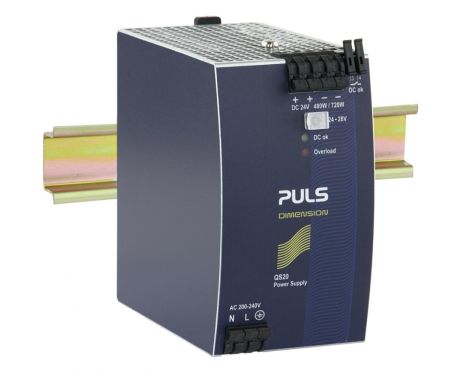

QS20.244
24 V, 20 A
DC 输出 | 24 - 28 Vdc |
---|---|
20 - 17 A | |
480 W | |
输入 | AC 200 - 240 V (± 15 %) |
尺寸(宽x高x深) | 70 x 124 x 127 mm |
重量 | 880 g |
输入数据
AC输入电压 | AC 200 - 240 V (± 15 %) |
---|---|
功率因数 | 0.5 |
输入浪涌电流抑制 | 主动式 |
输入浪涌电流 | 40 A |
外部输入保险丝推荐 | B-10 A / C-6 A |
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 - 28 V |
输出电流范围 | 20 - 17 A |
输出电流 | 17 A 当 28 V |
20 A 当 24 V | |
输出功率 | 480 W |
功率储备 | 50 % 峰值功率 |
降额 | 12 W/°C 为 >+60 °C |
电压纹波与噪声 最大值 | 100 mVpp |
概述
尺寸(宽x高x深) | 70 mm x 124 mm x 127 mm |
---|---|
Weight per unit (excl. packaging) | 880 g |
安装方式 | DIN导轨 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 弹压式接线端子 |
转换效率,典型值 | 94.5 % |
功率损耗,典型值 | 28.3 W |
MTBF SN 29500 @ 40 °C (h) | 577000 h |
DC-OK信号 | 有 |
