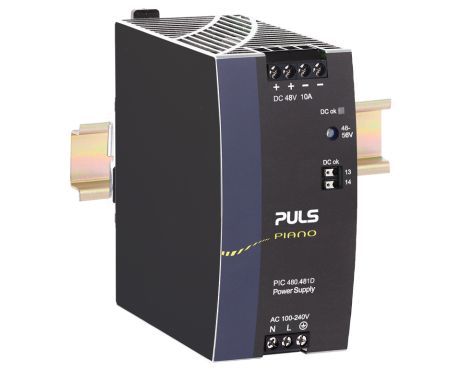

PIC480.481D

新建
单相系统的DIN导轨电源
48V, 10A
DC-OK信号继电器触点
数据表
DC 输出 48 - 56Vdc
10 - 8.6A
480W
输入 AC 100 - 240V (± 10%)
体积 59 x 124 x 127mm
重量 810g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (± 10%)
功率因数 0.970000
输入浪涌电流 15A / 35A
外部输入保险丝推荐 B-10A / C-6A

输出数据

额定电压 48Vdc
调压范围 48 - 56V
输出电流范围 10 - 8.6A
输出电流 8.6A 当 56V
10A 当 48V
输出功率 480W
电压纹波与噪声 最大值 100mVpp

概述

体积 59mm x 124mm x 127mm
每台的重量(净重) 810g
工作温度范围 -25°C 至 70°C
降额 12W/°C 当 >+55°C
安装方式 DIN导轨
转换效率,典型值 95.7%
功率损耗,典型值 21.6W
平均无故障时间 SN 29500 @ 40°C (h) 704000h
连接端子类型 螺丝式接线端子
DC-OK信号
材质 金属
