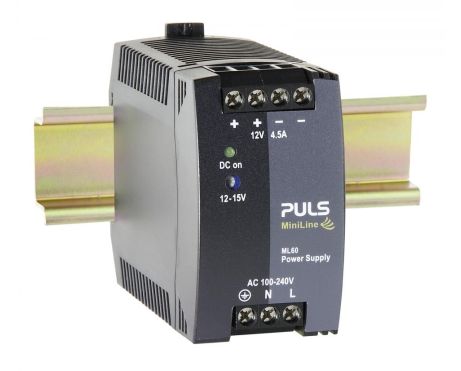

12V, 4.5A
DC 输出 12 - 15Vdc
4.5 - 3.6A
输入 AC 100 - 240V (-15%/+10%)
DC 110V - 300V (-20%/+25%)
体积 45 x 75 x 91mm
重量 250g
产品状态: 常备库存


AC输入电压 AC 100 - 240V (-15%/+10%)
DC输入电压 DC 110V - 300V (-20%/+25%)
功率因数 0.44
输入浪涌电流抑制 主动式
输入浪涌电流 6A
外部输入保险丝推荐 B-6A / C-3A


额定电压 12Vdc
调压范围 12 - 15V
输出电流范围 4.5 - 3.6A
输出电流 3.6A 当 15V
4.5A 当 12V
输出功率 54W
电压纹波与噪声 最大值 50mVpp


体积 45mm x 75mm x 91mm
每台的重量(净重) 250g
工作温度范围 -40°C 至 70°C
降额 1.4W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 87.6%
功率损耗,典型值 7.6W
平均无故障时间 SN 29500 @ 40°C (h) 1571000h
连接端子类型 螺丝式接线端子
