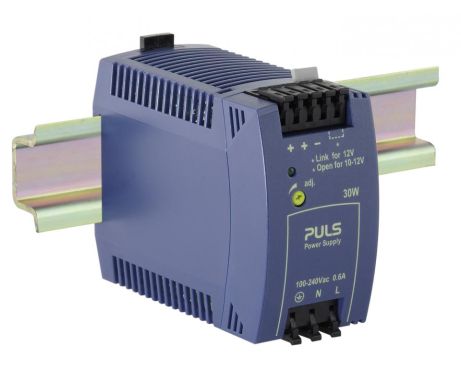

ML30.102

单相系统的DIN导轨电源
12V, 3A
非常低的输出噪声
数据表
DC 输出 10 - 12Vdc
3 - 2.5A
30W
输入 AC 100 - 240V (-15%/+10%)
DC 110V - 300V (-20%/+25%)
体积 45 x 75 x 91mm
重量 250g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (-15%/+10%)
DC输入电压 DC 110V - 300V (-20%/+25%)
功率因数 0.53
输入浪涌电流抑制 NTC
输入浪涌电流 17A / 35A
外部输入保险丝推荐 B-10A / C-6A

输出数据

额定电压 10Vdc
调压范围 10 - 12V
输出电流范围 3 - 2.5A
输出电流 2.5A 当 12V
3A 当 10V
输出功率 30W
电压纹波与噪声 最大值 10mVpp

概述

体积 45mm x 75mm x 91mm
每台的重量(净重) 250g
降额 0.8W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 84%
功率损耗,典型值 5.8W
平均无故障时间 SN 29500 @ 40°C (h) 650000h
连接端子类型 弹压式接线端子
