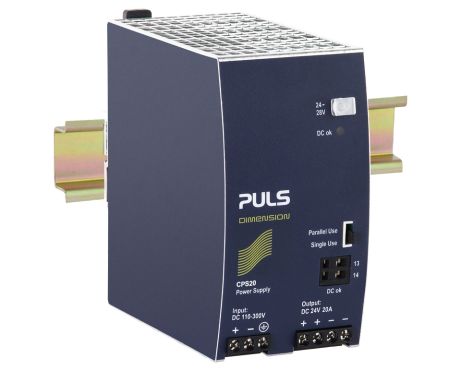

24 V, 20 A 增强型直流输入
|DC 输出||24 - 28 Vdc|
|20 - 17.1 A|
|输入||DC 110 V - 300 V (± 20 %)|
|尺寸（宽x高x深）||65 x 124 x 127 mm|
|DC输入电压||DC 110 V - 300 V (± 20 %)|
|输入浪涌电流||6 A / 4 A|
|调压范围||24 - 28 V|
|输出电流范围||20 - 17.1 A|
|输出电流||17.1 A 当 28 V|
|20 A 当 24 V|
|功率储备||20 % 额外功率|
|降额||12 W/°C 为 >+60 °C|
|电压纹波与噪声 最大值||50 mVpp|
|尺寸（宽x高x深）||65 mm x 124 mm x 127 mm|
|Weight per unit (excl. packaging)||940 g|
|工作温度范围||-25 °C 至 70 °C|
|MTBF SN 29500 @ 40 °C (h)||537000 h|
