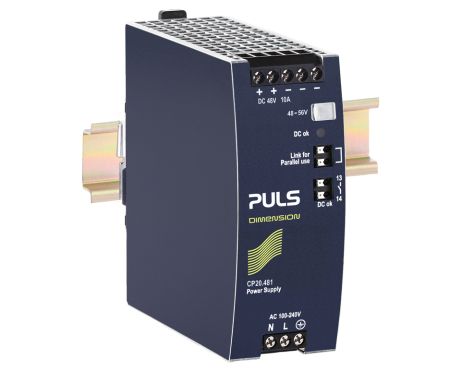

CP20.481
48 V, 10 A DC-OK信号继电器触点
DC 输出 | 48 - 56 Vdc |
---|---|
10 - 8.6 A | |
480 W | |
输入 | AC 100 - 240 V (± 10 %) |
DC 110 V - 150 V (± 20 %) | |
尺寸(宽x高x深) | 48 x 124 x 127 mm |
重量 | 830 g |
输入数据
AC输入电压 | AC 100 - 240 V (± 10 %) |
---|---|
DC输入电压 | DC 110 V - 150 V (± 20 %) |
谐波校正 | 主动式 |
功率因数 | 0.98 |
输入浪涌电流抑制 | 主动式 |
输入浪涌电流 | 4.5 A / 5.5 A |
外部输入保险丝推荐 | B-10 A / C-10 A |
输出数据
额定电压 | 48 Vdc |
---|---|
调压范围 | 48 - 56 V |
输出电流范围 | 10 - 8.6 A |
输出电流 | 8.6 A 当 56 V |
10 A 当 48 V | |
输出功率 | 480 W |
功率储备 | 20 % 额外功率 |
降额 | 6.4 W/°C 为 +45 to +60 °C |
电压纹波与噪声 最大值 | 50 mVpp |
概述
尺寸(宽x高x深) | 48 mm x 124 mm x 127 mm |
---|---|
Weight per unit (excl. packaging) | 830 g |
安装方式 | DIN导轨 |
Housing material | 金属 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 螺丝式接线端子 |
转换效率,典型值 | 96.3 % |
功率损耗,典型值 | 18.4 W |
MTBF SN 29500 @ 40 °C (h) | 540000 h |
DC-OK信号 | 有 |
