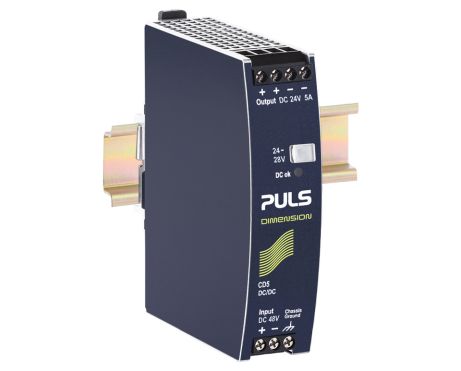

CD5.242

直流/直流转换器
24V, 5A
数据表
DC 输出 24 - 28Vdc
5 - 4.3A
120W
输入 DC 48V (± 25%)
体积 32 x 124 x 102mm
重量 425g
对比
产品状态: 常备库存

输入数据

DC输入电压 DC 48V (± 25%)

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 5 - 4.3A
输出电流 4.3A 当 28V
5A 当 24V
输出功率 120W
功率储备 20% 额外功率
电压纹波与噪声 最大值 50mVpp

概述

体积 32mm x 124mm x 102mm
每台的重量(净重) 425g
工作温度范围 -25°C 至 70°C
降额 3W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 90.3%
功率损耗,典型值 12.9W
平均无故障时间 SN 29500 @ 40°C (h) 951000h
连接端子类型 螺丝式接线端子
