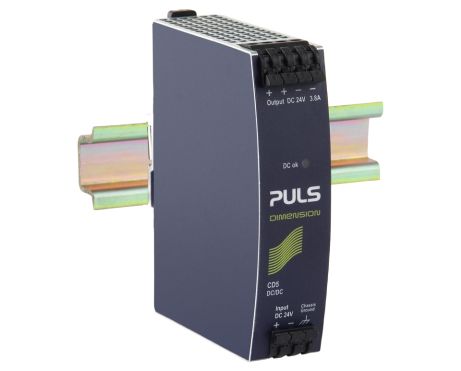

CD5.241-L1
24 V, 3.8 A NEC Class 2
DC 输出 | 24 Vdc |
---|---|
3.8 A | |
92 W | |
输入 | DC 24 V (-40 %/+35 %) |
尺寸(宽x高x深) | 32 x 124 x 102 mm |
重量 | 425 g |
输入数据
DC输入电压 | DC 24 V (-40 %/+35 %) |
---|---|
输入浪涌电流抑制 | 主动式 |
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 V |
输出电流范围 | 3.8 A |
输出电流 | 3.8 A 当 24 V |
输出功率 | 92 W |
电压纹波与噪声 最大值 | 50 mVpp |
概述
尺寸(宽x高x深) | 32 mm x 124 mm x 102 mm |
---|---|
Weight per unit (excl. packaging) | 425 g |
安装方式 | DIN导轨 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 弹压式接线端子 |
转换效率,典型值 | 90.5 % |
功率损耗,典型值 | 9.7 W |
MTBF SN 29500 @ 40 °C (h) | 1178000 h |
