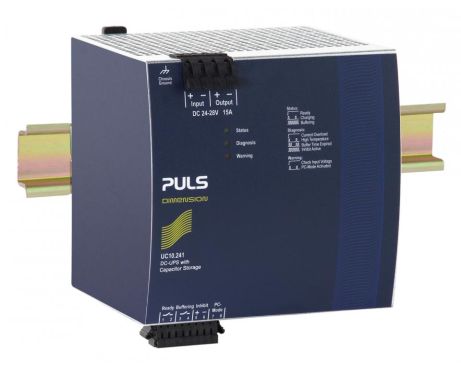

UC10.241
直流不间断电源用电容器储存
24 V, 15 A 典型值：9s 当15A时
数据表
24 V, 15 A 典型值：9s 当15A时
| DC 输出 | DC 24 V |
|---|---|
| 15 A | |
| 输入 | DC 24 V |
| 尺寸（宽x高x深） | 126 x 124 x 117 mm |
| 重量 | 1150 g |
输入数据
| DC输入电压 | DC 24 V |
|---|
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 22.5 Vds | |
| 输出电流 | 15 A |
| 15 A |
缓冲
| 储能元件 | 超级电容 |
|---|
概述
| 尺寸（宽x高x深） | 126 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 1150 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 弹压式接线端子 |
| MTBF SN 29500 @ 40 °C (h) | 954000 h |
