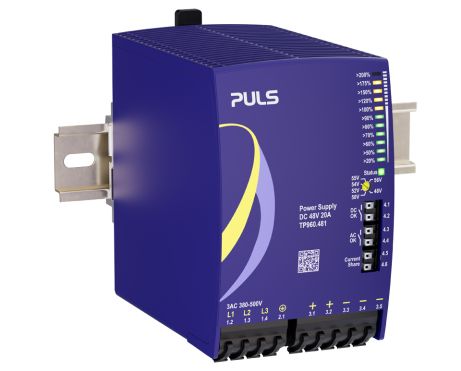

TP960.481
新建
三相系统的DIN导轨电源
48 V, 20 A AC-OK, DC-OK, parallel use
数据表
48 V, 20 A AC-OK, DC-OK, parallel use
| DC 输出 | 48 - 56 Vdc |
|---|---|
| 24 - 20.6 A | |
| 960 W | |
| 输入 | AC 380 - 500 V (-15 %/+10 %) |
| 尺寸（宽x高x深） | 79 x 124 x 136 mm |
| 重量 | 1100 g |
输入数据
| AC输入电压 | AC 380 - 500 V (-15 %/+10 %) |
|---|---|
| 功率因数 | 0.91 |
| 输入浪涌电流抑制 | 主动式 |
| 外部输入保险丝推荐 | B-16 A / C-16 A |
输出数据
| 额定电压 | 48 Vdc |
|---|---|
| 调压范围 | 48 - 56 V |
| 输出电流范围 | 24 - 20.6 A |
| 输出电流 | 20.6 A 当 56 V |
| 24 A 当 48 V | |
| 输出功率 | 960 W |
| 功率储备 | 200 % 峰值功率 |
| 降额 | 12.8 W/°C 为 +45 to +60 °C |
| 8 W/°C 为 +60 to +70 °C | |
| 电压纹波与噪声 最大值 | 50 mVpp |
概述
| 尺寸（宽x高x深） | 79 mm x 124 mm x 136 mm |
|---|---|
| Weight per unit (excl. packaging) | 1100 g |
| 安装方式 | DIN导轨 |
| Housing material | 金属 & 塑料 |
| 工作温度范围 | -40 °C 至 70 °C |
| 连接端子类型 | 弹压式接线端子 |
| 转换效率，典型值 | 97 % |
| 功率损耗，典型值 | 32 W |
| MTBF SN 29500 @ 40 °C (h) | 342 000 h |
| DC-OK信号 | 有 |
