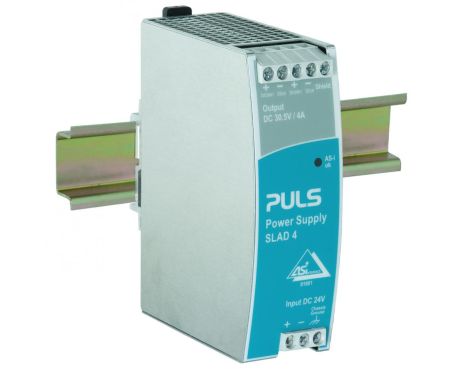

SLAD4.100
AS-Interface 电源
30.5 V, 4 A 直流/直流转换器
数据表
30.5 V, 4 A 直流/直流转换器
| DC 输出 | 30.6 Vdc |
|---|---|
| 4 A | |
| 输入 | DC 24 V (-25 %/+35 %) |
| 尺寸（宽x高x深） | 40 x 124 x 102 mm |
| 重量 | 500 g |
输入数据
| DC输入电压 | DC 24 V (-25 %/+35 %) |
|---|---|
| 输入浪涌电流抑制 | 主动式 |
输出数据
| 额定电压 | 30.6 Vdc |
|---|---|
| 调压范围 | 30.6 V |
| 输出电流范围 | 4 A |
| 输出电流 | 4 A 当 30.6 V |
| 降额 | 3 W/°C 为 >+60 °C |
| 电压纹波与噪声 最大值 | 50 mVpp |
概述
| 尺寸（宽x高x深） | 40 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 500 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | 螺丝式接线端子 |
| 转换效率，典型值 | 90.5 % |
| 功率损耗，典型值 | 12.7 W |
| MTBF SN 29500 @ 40 °C (h) | 1247000 h |
