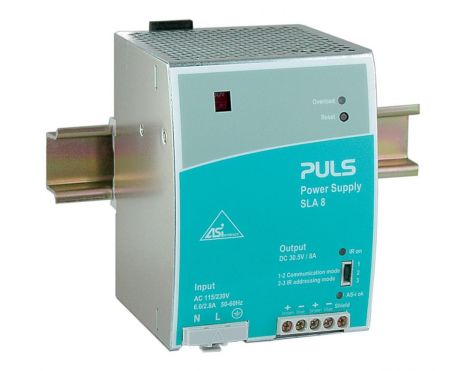

SLA8.100

AS-Interface 电源
30.5V, 8A
数据表
DC 输出 30.6Vdc
8A
输入 AC 100 - 120 / 220 - 240V (-15%/+10%)
体积 91 x 124 x 102mm
重量 890g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 120 / 220 - 240V (-15%/+10%)
功率因数 0.48
输入浪涌电流抑制 主动式

输出数据

额定电压 30.6Vdc
调压范围 30.6V
输出电流范围 8A
输出电流 8A 当 30.6V
电压纹波与噪声 最大值 50mVpp

概述

体积 91mm x 124mm x 102mm
每台的重量(净重) 890g
降额 6W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 92%
功率损耗,典型值 21.2W
平均无故障时间 SN 29500 @ 40°C (h) 869000h
连接端子类型 螺丝式接线端子
