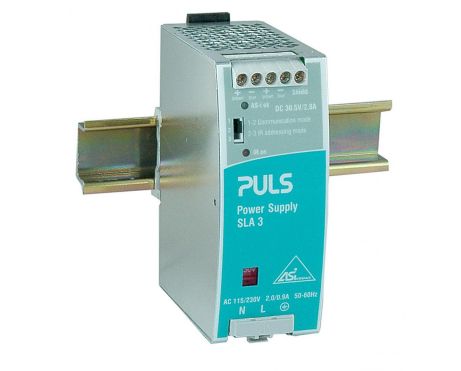

SLA3.100
AS-Interface 电源
30.5 V, 2.8 A
数据表
30.5 V, 2.8 A
| DC 输出 | 30.6 Vdc |
|---|---|
| 2.8 A | |
| 输入 | AC 100 - 120 / 220 - 240 V (-15 %/+10 %) |
| 尺寸（宽x高x深） | 49 x 124 x 102 mm |
| 重量 | 500 g |
输入数据
| AC输入电压 | AC 100 - 120 / 220 - 240 V (-15 %/+10 %) |
|---|---|
| 功率因数 | >0.5 |
| 输入浪涌电流抑制 | NTC |
输出数据
| 额定电压 | 30.6 Vdc |
|---|---|
| 调压范围 | 30.6 V |
| 输出电流范围 | 2.8 A |
| 输出电流 | 2.8 A 当 30.6 V |
| 降额 | 2 W/°C 为 >+60 °C |
| 电压纹波与噪声 最大值 | 50 mVpp |
概述
| 尺寸（宽x高x深） | 49 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 500 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 螺丝式接线端子 |
| 转换效率，典型值 | 90.5 % |
| 功率损耗，典型值 | 10.5 W , 9.1 W |
| MTBF SN 29500 @ 40 °C (h) | 1942000 h |
