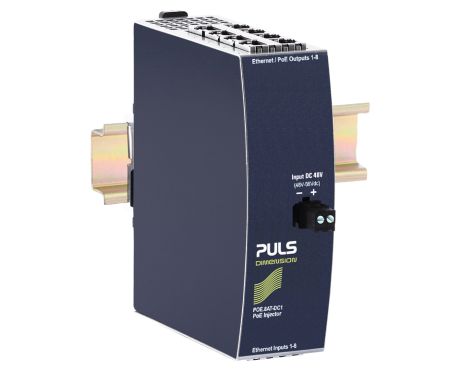

POE.8AT-DC1
PoE接入器
53 V, 0.6 A 8 端口
数据表
53 V, 0.6 A 8 端口
| DC 输出 | 48 - 56 Vdc |
|---|---|
| 0.6 - 0.6 A | |
| 240 W | |
| 输入 | DC 48 V - 56 V |
| 尺寸（宽x高x深） | 39 x 128 x 117 mm |
| 重量 | 380 g |
输入数据
| DC输入电压 | DC 48 V - 56 V |
|---|
输出数据
| 额定电压 | 48 Vdc |
|---|---|
| 调压范围 | 48 - 56 V |
| 输出电流范围 | 0.6 - 0.6 A |
| 输出电流 | 0.6 A 当 56 V |
| 0.6 A 当 48 V | |
| 输出功率 | 240 W |
概述
| 尺寸（宽x高x深） | 39 mm x 128 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 380 g |
| 安装方式 | DIN导轨 |
| Housing material | 金属 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | 插头, RJ45 Ethernet |
| 转换效率，典型值 | 97.3 % |
| 功率损耗，典型值 | 6.4 W |
