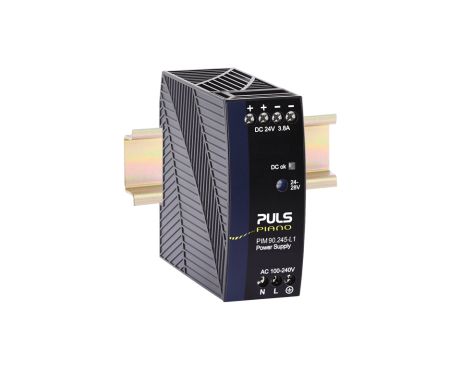

PIM90.245-L1
24 V, 3.8 A 螺丝式接线端子 NEC Class2
DC 输出 | 24 - 28 Vdc |
---|---|
3.8 - 3.2 A | |
90 W | |
输入 | AC 100 - 240 V (± 10 %) |
尺寸(宽x高x深) | 36 x 90 x 91 mm |
重量 | 270 g |
输入数据
AC输入电压 | AC 100 - 240 V (± 10 %) |
---|---|
功率因数 | 0.45 |
输入浪涌电流 | 40 A |
外部输入保险丝推荐 | B-6 A / C-4 A |
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 - 28 V |
输出电流范围 | 3.8 - 3.2 A |
输出电流 | 3.2 A 当 28 V |
3.8 A 当 24 V | |
输出功率 | 90 W |
降额 | 2.4 W/°C 为 +60 to +70 °C |
电压纹波与噪声 最大值 | 100 mVpp |
概述
尺寸(宽x高x深) | 36 mm x 90 mm x 91 mm |
---|---|
Weight per unit (excl. packaging) | 270 g |
安装方式 | DIN导轨 |
连接端子类型 | 螺丝式接线端子 |
转换效率,典型值 | 93.8 % |
功率损耗,典型值 | 7.9 W , 6 W |
MTBF SN 29500 @ 40 °C (h) | 1 446 000 h |
