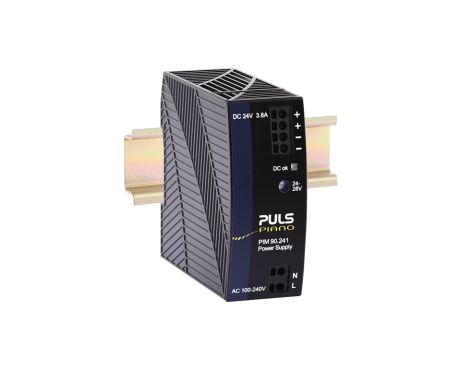

PIM90.241
单相系统的DIN导轨电源
24 V, 3.8 A 插入式接线端子
数据表
24 V, 3.8 A 插入式接线端子
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 3.8 - 3.2 A | |
| 90 W | |
| 输入 | AC 100 - 240 V (± 10 %) |
| 尺寸（宽x高x深） | 36 x 90 x 91 mm |
| 重量 | 270 g |
输入数据
| AC输入电压 | AC 100 - 240 V (± 10 %) |
|---|---|
| 功率因数 | 0.45 |
| 输入浪涌电流抑制 | NTC |
| 输入浪涌电流 | 18 A / 40 A |
| 外部输入保险丝推荐 | B-6 A / C-4 A |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 3.8 - 3.2 A |
| 输出电流 | 3.2 A 当 28 V |
| 3.8 A 当 24 V | |
| 输出功率 | 90 W |
| 降额 | 2.4 W/°C 为 +60 to +70 °C |
| 电压纹波与噪声 最大值 | 100 mVpp |
概述
| 尺寸（宽x高x深） | 36 mm x 90 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 270 g |
| 安装方式 | DIN导轨 |
| 连接端子类型 | 插入式接线端子 |
| 转换效率，典型值 | 93.8 % |
| 功率损耗，典型值 | 7.9 W , 6 W |
| MTBF SN 29500 @ 40 °C (h) | 1 507 000 h |
| DC-OK信号 | 有 |
