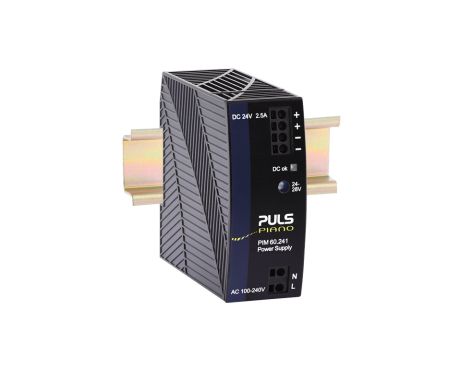

24 V, 2.5 A 插入式接线端子
|DC 输出||24 - 28 Vdc|
|2.5 - 2.1 A|
|输入||AC 100 - 240 V (± 10 %)|
|尺寸（宽x高x深）||36 x 90 x 91 mm|
|AC输入电压||AC 100 - 240 V (± 10 %)|
|输入浪涌电流||15 A / 36 A|
|外部输入保险丝推荐||B-6 A / C-4 A|
|调压范围||24 - 28 V|
|输出电流范围||2.5 - 2.1 A|
|输出电流||2.1 A 当 28 V|
|2.5 A 当 24 V|
|降额||0.06 W/°C 为 +60 to +70 °C|
|电压纹波与噪声 最大值||100 mVpp|
|尺寸（宽x高x深）||36 mm x 90 mm x 91 mm|
|Weight per unit (excl. packaging)||220 g|
|功率损耗，典型值||6.2 W , 5.4 W|
|MTBF SN 29500 @ 40 °C (h)||1982000 h|
