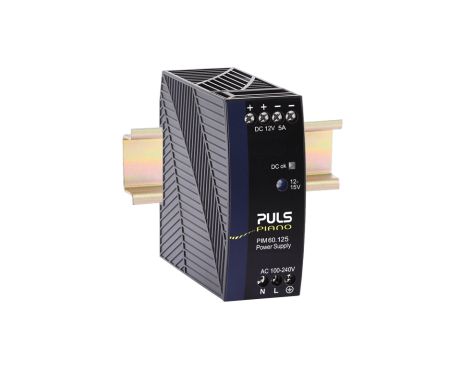

PIM60.125

新建
单相系统的DIN导轨电源
12V, 5A
大线径螺丝端子
数据表
DC 输出 12 - 15Vdc
5 - 4A
60W
输入 AC 100 - 240V (± 10%)
尺寸(宽x高x深) 36 x 90 x 91mm
重量 225g
对比

输入数据

AC输入电压 AC 100 - 240V (± 10%)
功率因数 0.470000
输入浪涌电流抑制 NTC
输入浪涌电流 15A / 36A
外部输入保险丝推荐 B-6A / C-4A

输出数据

额定电压 12Vdc
调压范围 12 - 15V
输出电流范围 5 - 4A
输出电流 4A 当 15V
5A 当 12V
输出功率 60W
降额 1.44W/°C 为 +60 to +70°C
电压纹波与噪声 最大值 100mVpp

概述

尺寸(宽x高x深) 36mm x 90mm x 91mm
Weight per unit (excl. packaging) 225g
安装方式 DIN导轨
Housing material Polycarbonate
工作温度范围 -10°C 至 70°C
连接端子类型 螺丝式接线端子
转换效率,典型值 90.7%
功率损耗,典型值 6.2W
平均无故障时间 SN 29500 @ 40°C (h) 1673000h
DC-OK信号
