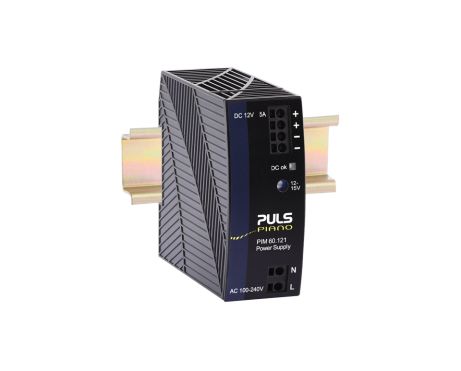

PIM60.121
单相系统的DIN导轨电源
12 V, 5 A 插入式接线端子
数据表
12 V, 5 A 插入式接线端子
| DC 输出 | 12 - 15 Vdc |
|---|---|
| 5 - 4 A | |
| 60 W | |
| 输入 | AC 100 - 240 V (± 10 %) |
| 尺寸（宽x高x深） | 36 x 90 x 91 mm |
| 重量 | 225 g |
输入数据
| AC输入电压 | AC 100 - 240 V (± 10 %) |
|---|---|
| 功率因数 | 0.470000 |
| 输入浪涌电流抑制 | NTC |
| 输入浪涌电流 | 15 A / 36 A |
| 外部输入保险丝推荐 | B-6 A / C-4 A |
输出数据
| 额定电压 | 12 Vdc |
|---|---|
| 调压范围 | 12 - 15 V |
| 输出电流范围 | 5 - 4 A |
| 输出电流 | 4 A 当 15 V |
| 5 A 当 12 V | |
| 输出功率 | 60 W |
| 降额 | 1.44 W/°C 为 +60 to +70 °C |
| 电压纹波与噪声 最大值 | 100 mVpp |
概述
| 尺寸（宽x高x深） | 36 mm x 90 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 225 g |
| 安装方式 | DIN导轨 |
| Housing material | Polycarbonate |
| 工作温度范围 | -10 °C 至 70 °C |
| 连接端子类型 | 插入式接线端子 |
| 转换效率，典型值 | 90.7 % |
| 功率损耗，典型值 | 6.2 W |
| MTBF SN 29500 @ 40 °C (h) | 1673000 h |
| DC-OK信号 | 有 |
