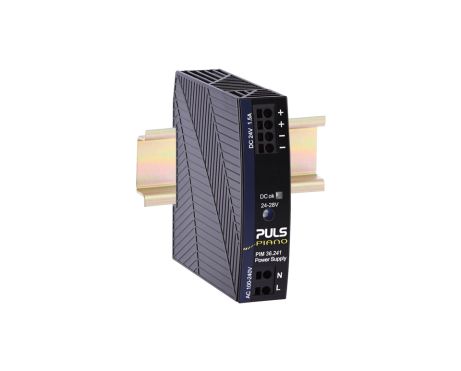

PIM36.241

新建
单相系统的DIN导轨电源
24V, 1.5A
插入式接线端子
数据表
DC 输出 24 - 28Vdc
1.5 - 1.2A
36W
输入 AC 100 - 240V (± 10%)
尺寸(宽x高x深) 22.5 x 90 x 91mm
重量 140g
对比

输入数据

AC输入电压 AC 100 - 240V (± 10%)
功率因数 0.460000
输入浪涌电流抑制 NTC
输入浪涌电流 14A / 40A
外部输入保险丝推荐 B-6A / C-4A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 1.5 - 1.2A
输出电流 1.2A 当 28V
1.5A 当 24V
输出功率 36W
降额 0.96W/°C 为 +60 to +70°C
电压纹波与噪声 最大值 50mVpp

概述

尺寸(宽x高x深) 22.5mm x 90mm x 91mm
Weight per unit (excl. packaging) 140g
安装方式 DIN导轨
Housing material Polycarbonate
工作温度范围 -10°C 至 70°C
连接端子类型 插入式接线端子
转换效率,典型值 90.6%
功率损耗,典型值 3.7W
平均无故障时间 SN 29500 @ 40°C (h) 2081000h
DC-OK信号
