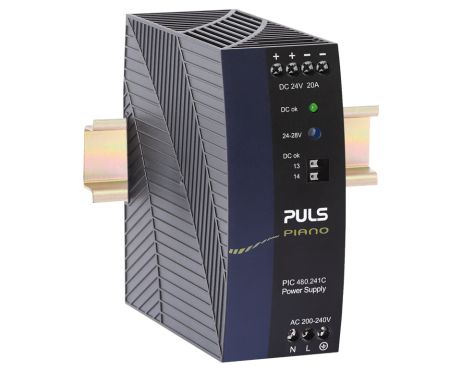

PIC480.241C

新建
单相系统的DIN导轨电源
24V, 20A
DC-OK信号继电器触点
数据表
DC 输出 24 - 28Vdc
20 - 17.1A
480W
输入 AC 200 - 240V (± 10%)
体积 49 x 124 x 124mm
重量 620g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 200 - 240V (± 10%)
功率因数 0.99
输入浪涌电流抑制 NTC
输入浪涌电流 26A
外部输入保险丝推荐 B-10A / C-6A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 20 - 17.1A
输出电流 17.1A 当 28V
20A 当 24V
输出功率 480W
电压纹波与噪声 最大值 100mVpp

概述

体积 49mm x 124mm x 124mm
每台的重量(净重) 620g
工作温度范围 -25°C 至 70°C
降额 8W/°C 当 >+55°C
安装方式 DIN导轨
转换效率,典型值 95.7%
功率损耗,典型值 21.6W
平均无故障时间 SN 29500 @ 40°C (h) 482000h
连接端子类型 螺丝式接线端子
DC-OK信号
