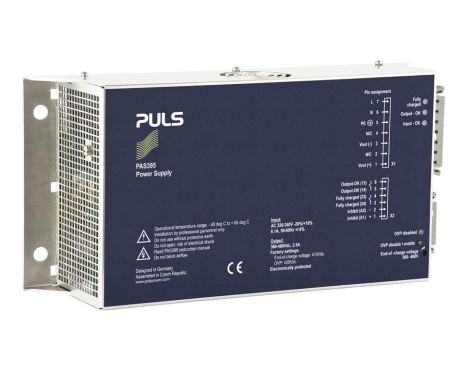

PAS395
单相系统的DIN导轨电源
410 V, 2.5 A 为超级电容器充电
数据表
410 V, 2.5 A 为超级电容器充电
| DC 输出 | 360 - 460 Vdc |
|---|---|
| 2.5 - 2.5 A | |
| 1025 W | |
| 输入 | AC 220 - 240 V (-20 %/+10 %) |
| 尺寸（宽x高x深） | 310 x 158 x 80 mm |
| 重量 | 2300 g |
输入数据
| AC输入电压 | AC 220 - 240 V (-20 %/+10 %) |
|---|---|
| 谐波校正 | 主动式 |
| 功率因数 | >0.9 |
| 输入浪涌电流抑制 | 主动式 |
| 输入浪涌电流 | 14 A |
| 外部输入保险丝推荐 | B-10 A / C-8 A |
输出数据
| 额定电压 | 360 Vdc |
|---|---|
| 调压范围 | 360 - 460 V |
| 输出电流范围 | 2.5 - 2.5 A |
| 输出电流 | 2.5 A 当 460 V |
| 2.5 A 当 360 V | |
| 输出功率 | 1025 W |
| 电压纹波与噪声 最大值 | 10 mVpp |
概述
| 尺寸（宽x高x深） | 310 mm x 158 mm x 80 mm |
|---|---|
| Weight per unit (excl. packaging) | 2300 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -40 °C 至 65 °C |
| 连接端子类型 | 螺丝式接线端子 |
| 转换效率，典型值 | 94.4 % |
| 功率损耗，典型值 | 60,8 W |
| DC-OK信号 | 有 |
