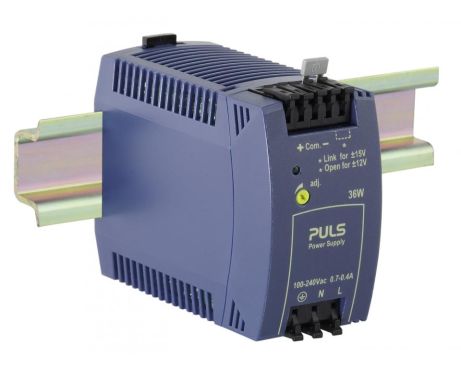

ML30.106

单相系统的DIN导轨电源
12V, 2.5A
双路输出电压
数据表
DC 输出 12 - 15Vdc
2.5 - 2.5A
36W
输入 AC 100 - 240V (-15%/+10%)
DC 110V - 300V (-20%/+25%)
尺寸(宽x高x深) 45 x 75 x 91mm
重量 240g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (-15%/+10%)
DC输入电压 DC 110V - 300V (-20%/+25%)
功率因数 0.53
输入浪涌电流抑制 NTC
输入浪涌电流 17A / 35A
外部输入保险丝推荐 B-10A / C-6A

输出数据

额定电压 12Vdc
调压范围 12 - 15V
输出电流范围 2.5 - 2.5A
输出电流 2.5A 当 15V
2.5A 当 12V
输出功率 36W
降额 1W/°C 为 >+60°C
电压纹波与噪声 最大值 50mVpp

概述

尺寸(宽x高x深) 45mm x 75mm x 91mm
每台的重量(净重) 240g
安装方式 DIN导轨
转换效率,典型值 86%
功率损耗,典型值 5.9W
平均无故障时间 SN 29500 @ 40°C (h) 600000h
连接端子类型 弹压式接线端子
