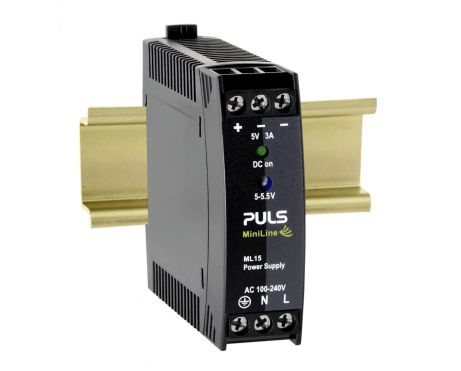

5V, 3A
DC 输出 5 - 5.5Vdc
3 - 2.7A
输入 AC 100 - 240V (-15%/+10%)
DC 110V - 300V (-20%/+25%)
体积 23 x 75 x 91mm
重量 130g
产品状态: 常备库存


AC输入电压 AC 100 - 240V (-15%/+10%)
DC输入电压 DC 110V - 300V (-20%/+25%)
功率因数 0.44
输入浪涌电流抑制 NTC
输入浪涌电流 16A / 31A
外部输入保险丝推荐 B-6A / C-3A


额定电压 5Vdc
调压范围 5 - 5.5V
输出电流范围 3 - 2.7A
输出电流 2.7A 当 5.5V
3A 当 5V
输出功率 15W
电压纹波与噪声 最大值 50mVpp


体积 23mm x 75mm x 91mm
每台的重量(净重) 130g
降额 0.4W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 77.2%
功率损耗,典型值 4,5W
平均无故障时间 SN 29500 @ 40°C (h) 2686000h
连接端子类型 螺丝式接线端子
