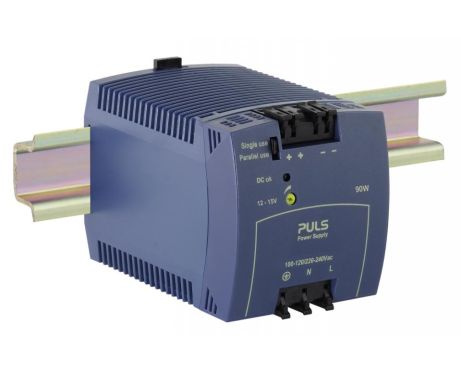

ML100.102

单相系统的DIN导轨电源
12V, 7.5A
数据表
DC 输出 12 - 15Vdc
7.5 - 6A
90W
输入 AC 100 - 120 / 220 - 240V (-15%/+10%)
DC 290V (-25%/+30%)
体积 73 x 75 x 103mm
重量 360g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 120 / 220 - 240V (-15%/+10%)
DC输入电压 DC 290V (-25%/+30%)
功率因数 0.55
输入浪涌电流抑制 NTC
输入浪涌电流 22A / 37A
外部输入保险丝推荐 B-10A / C-6A

输出数据

额定电压 12Vdc
调压范围 12 - 15V
输出电流范围 7.5 - 6A
输出电流 6A 当 15V
7.5A 当 12V
输出功率 90W
电压纹波与噪声 最大值 50mVpp

概述

体积 73mm x 75mm x 103mm
每台的重量(净重) 360g
降额 2.5W/°C 当 >+60°C
安装方式 DIN导轨
转换效率,典型值 88.5%
功率损耗,典型值 11.7W
平均无故障时间 SN 29500 @ 40°C (h) 500000h
连接端子类型 弹压式接线端子
