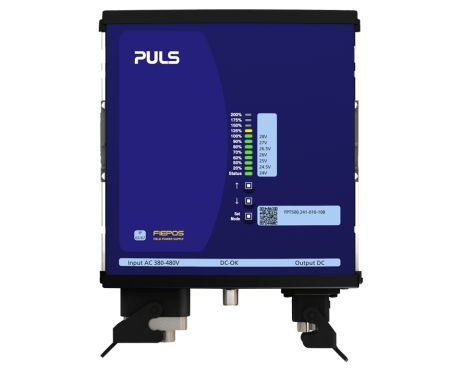

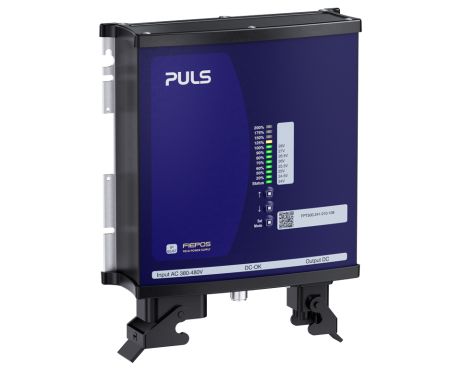

FPT500.241-010-108
24 V, 25 A 输入:HanQ4/2 | 输出:HanQ2/0
DC 输出 | 24 - 28 Vdc |
---|---|
25 - 21.4 A | |
600 W | |
输入 | AC 380 - 480 V (± 15 %) |
尺寸(宽x高x深) | 181 x 183 x 59 mm |
重量 | 1200 g |
输入数据
AC输入电压 | AC 380 - 480 V (± 15 %) |
---|---|
功率因数 | 0.95 |
输入浪涌电流抑制 | 主动式 |
输入浪涌电流 | 1.9 A / 1.8 A |
外部输入保险丝推荐 | B-6 A / C-6 A |
输出数据
额定电压 | 24 Vdc |
---|---|
调压范围 | 24 - 28 V |
输出电流范围 | 25 - 21.4 A |
输出电流 | 21.4 A 当 28 V |
25 A 当 24 V | |
输出功率 | 600 W |
功率储备 | 1000 W (up to 5s) |
降额 | 10 W/°C 为 +45 to +70 °C |
33 W/1000 m 为 altitudes >2000 m | |
电压纹波与噪声 最大值 | 100 mVpp |
概述
尺寸(宽x高x深) | 181 mm x 183 mm x 59 mm |
---|---|
Weight per unit (excl. packaging) | 1200 g |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | Input: HanQ4/2 | Output: HanQ2/0 |
转换效率,典型值 | 95.6 % |
功率损耗,典型值 | 23 W |
MTBF SN 29500 @ 40 °C (h) | 290000 h |
DC-OK信号 | 有 |
