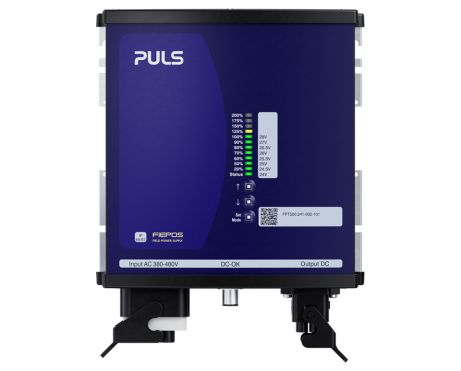

FPT500.241-002-101

新建
IP65/67 power supply
24V, 20A
Input: HanQ4/2 | Output: HanQ4/0
数据表
DC 输出 24 - 28Vdc
20.8 - 17.9A
500W
输入 AC 380 - 480V (± 15%)
尺寸(宽x高x深) 182 x 183 x 59mm
重量 1200g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 380 - 480V (± 15%)
功率因数 0.95
输入浪涌电流抑制 主动式
输入浪涌电流 1.9A / 1.8A
外部输入保险丝推荐 B-6A / C-6A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 20.8 - 17.9A
输出电流 17.9A 当 28V
20.8A 当 24V
输出功率 500W
功率储备 1000W power reserves (up to 5s)
降额 10W/°C 为 +55 to +70°C
电压纹波与噪声 最大值 100mVpp

概述

尺寸(宽x高x深) 182mm x 183mm x 59mm
每台的重量(净重) 1200g
工作温度范围 -25°C 至 70°C
转换效率,典型值 95.6%
功率损耗,典型值 23W
平均无故障时间 SN 29500 @ 40°C (h) 290000h
连接端子类型 Input HanQ4/2 | Output HanQ4/0
DC-OK信号
