FPS300.241-002-101

新建

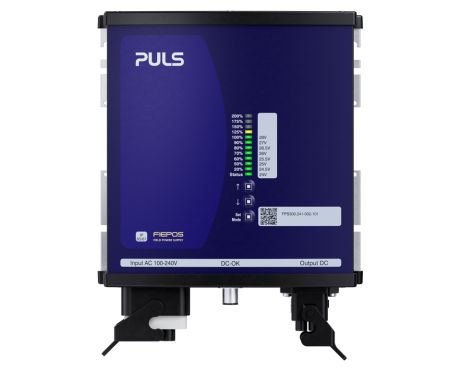

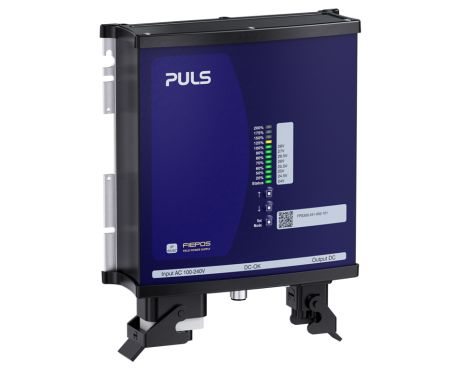

1-phase IP54-67 power supply
24 V, 15 A
输入:HanQ4/2 | 输出:HanQ4/0
数据表
DC 输出 24 - 28 Vdc
15 - 12.9 A
360 W
输入 AC 100 - 240 V (-15 %/+10 %)
DC 110 V - 300 V (± 20 %)
尺寸(宽x高x深) 182 x 183 x 59 mm
重量 1200 g
对比

输入数据

AC输入电压 AC 100 - 240 V (-15 %/+10 %)
DC输入电压 DC 110 V - 300 V (± 20 %)
功率因数 0.97
输入浪涌电流抑制 NTC
输入浪涌电流 3 A / 7 A
外部输入保险丝推荐 B-6 A / C-6 A

输出数据

额定电压 24 Vdc
调压范围 24 - 28 V
输出电流范围 15 - 12.9 A
输出电流 12.9 A 当 28 V
15 A 当 24 V
输出功率 360 W
功率储备 600 W (up to 5s)
降额 10 W/°C 为 +55 to +70 °C
电压纹波与噪声 最大值 50 mVpp

概述

尺寸(宽x高x深) 182 mm x 183 mm x 59 mm
Weight per unit (excl. packaging) 1200 g
工作温度范围 -25 °C 至 70 °C
连接端子类型 Input: HanQ4/2 | Output: HanQ4/0
转换效率,典型值 95.6 %
功率损耗,典型值 16.2 W
DC-OK信号
