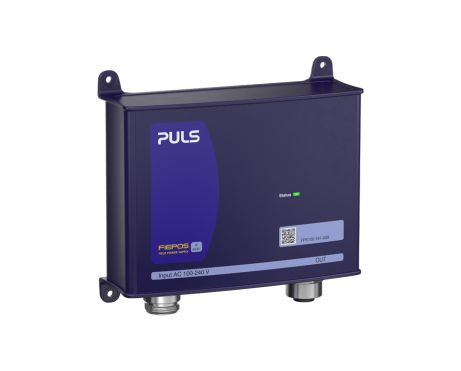

FPS100.241-009
单相 IP54、IP65 和 IP67 电源
24 V, 3.9 A Input: 7/8" 3pin | Output: 7/8" 4pin | NEC Class2
数据表
24 V, 3.9 A Input: 7/8" 3pin | Output: 7/8" 4pin | NEC Class2
| DC 输出 | 24 Vdc |
|---|---|
| 3.9 A | |
| 94 W | |
| 输入 | AC 100 - 240 V (-15 %/+10 %) |
| 尺寸（宽x高x深） | 165 x 152 x 59 mm |
| 重量 | 690 g |
输入数据
| AC输入电压 | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| 谐波校正 | 主动式 |
| 功率因数 | 0.95 |
| 外部输入保险丝推荐 | B-6 A / C-6 A |
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 V |
| 输出电流范围 | 3.9 A |
| 输出电流 | 3.9 A 当 24 V |
| 输出功率 | 94 W |
| 功率储备 | 150 W 最长4秒） |
| 降额 | 1.4 W/°C 为 +45 to +70 °C |
| 10 W/1000 m 为 海拔高于 2000 米 | |
| 电压纹波与噪声 最大值 | 60 mVpp |
概述
| 尺寸（宽x高x深） | 165 mm x 152 mm x 59 mm |
|---|---|
| Weight per unit (excl. packaging) | 690 g |
| 安装方式 | 壁挂式安装 |
| Housing material | Polycarbonate |
| 工作温度范围 | -30 °C 至 70 °C |
| 连接端子类型 | 输入：7/8" 3针 | 输出：7/8" 4针 |
| 转换效率，典型值 | 94.6 % |
| 功率损耗，典型值 | 5.8 W |
| CRA相关产品 | 是 |
