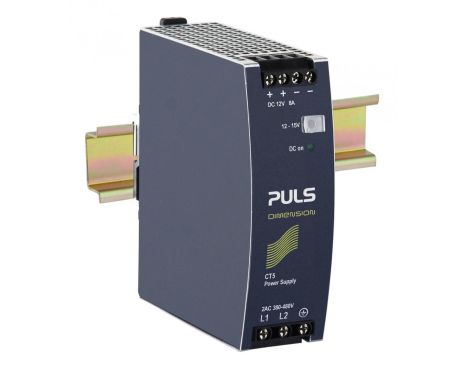

12 V, 8 A
|DC 输出||12 - 15 Vdc|
|8 - 6.4 A|
|输入||AC 380 - 480 V (-15 %/+20 %)|
|尺寸（宽x高x深）||40 x 124 x 117 mm|
|AC输入电压||AC 380 - 480 V (-15 %/+20 %)|
|输入浪涌电流||4 A / 4 A|
|外部输入保险丝推荐||B-6 A / C-3 A|
|调压范围||12 - 15 V|
|输出电流范围||8 - 6.4 A|
|输出电流||6.4 A 当 15 V|
|8 A 当 12 V|
|降额||2.5 W/°C 为 >+60 °C|
|电压纹波与噪声 最大值||100 mVpp|
|尺寸（宽x高x深）||40 mm x 124 mm x 117 mm|
|Weight per unit (excl. packaging)||500 g|
|工作温度范围||-25 °C 至 70 °C|
|MTBF SN 29500 @ 40 °C (h)||983000 h|
PULS offers assistance on an individual level regarding your power supply selection. Online meetings can be arranged with our teams based in various international locations.
PULS has successfully established an experienced team of application engineers to offer you the maximum technical support. They are always at your availability.
PULS is deliberately working on guaranteeing the best delivery reliability. This guarantee is based on PULS controlling its full supply chain including the entire product life cycle.
