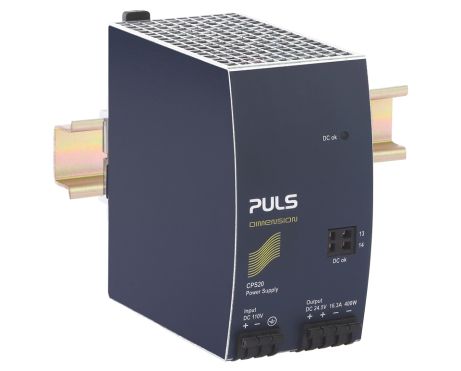

CPS20.241-60
直流/直流转换器
24.5 V, 16.3 A 轨道交通应用
数据表
24.5 V, 16.3 A 轨道交通应用
| DC 输出 | 24.5 Vdc |
|---|---|
| 16.3 A | |
| 400 W | |
| 输入 | DC 110 V (-30 %/+40 %) |
| 尺寸（宽x高x深） | 65 x 124 x 127 mm |
| 重量 | 980 g |
输入数据
| DC输入电压 | DC 110 V (-30 %/+40 %) |
|---|
输出数据
| 额定电压 | 24.5 Vdc |
|---|---|
| 调压范围 | 24.5 V |
| 输出电流范围 | 16.3 A |
| 输出电流 | 16.3 A 当 24.5 V |
| 输出功率 | 400 W |
| 电压纹波与噪声 最大值 | 70 mVpp |
概述
| 尺寸（宽x高x深） | 65 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 980 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -40 °C 至 70 °C |
| 连接端子类型 | 弹压式接线端子 |
| 转换效率，典型值 | 93.7 % |
| 功率损耗，典型值 | 26.9 W |
| MTBF SN 29500 @ 40 °C (h) | 571000 h |
