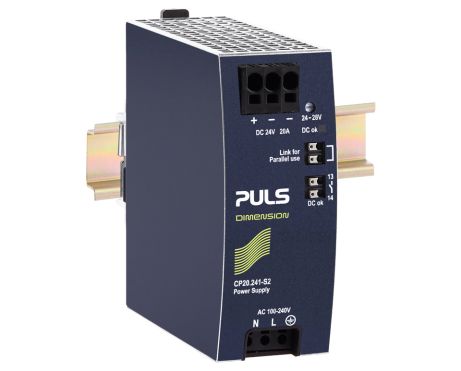

CP20.241-S2

新建
单相系统的DIN导轨电源
24V, 20A
插入式接线端子
数据表
DC 输出 24 - 28Vdc
20 - 17.1A
480W
输入 AC 100 - 240V (-15%/+10%)
DC 110V - 150V (± 20%)
体积 48 x 124 x 127mm
重量 830g
对比
产品状态: 常备库存

输入数据

AC输入电压 AC 100 - 240V (-15%/+10%)
DC输入电压 DC 110V - 150V (± 20%)
谐波校正 主动式
功率因数 0.98
输入浪涌电流抑制 主动式
输入浪涌电流 10A / 4.5A
外部输入保险丝推荐 B-10A / C-10A

输出数据

额定电压 24Vdc
调压范围 24 - 28V
输出电流范围 20 - 17.1A
输出电流 17.1A 当 28V
20A 当 24V
输出功率 480W
功率储备 20% 额外功率
电压纹波与噪声 最大值 50mVpp

概述

体积 48mm x 124mm x 127mm
每台的重量(净重) 830g
工作温度范围 -25°C 至 70°C
降额 12W/°C 当 >60°C
安装方式 DIN导轨
转换效率,典型值 95.6%
功率损耗,典型值 22.1W
平均无故障时间 SN 29500 @ 40°C (h) 590000h
连接端子类型 插入式接线端子
DC-OK信号
