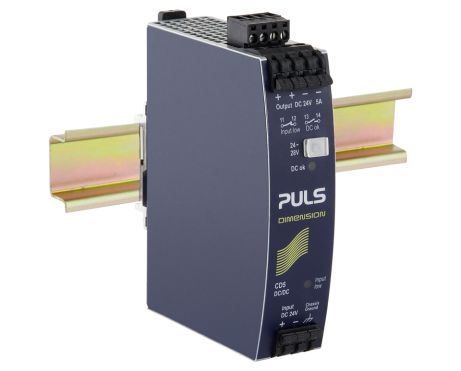

CD5.241-S1
直流/直流转换器
24 V, 5 A 带信号触点
数据表
24 V, 5 A 带信号触点
| DC 输出 | 24 - 28 Vdc |
|---|---|
| 5 - 4.3 A | |
| 120 W | |
| 输入 | DC 24 V (-25 %/+35 %) |
| 尺寸（宽x高x深） | 32 x 124 x 102 mm |
| 重量 | 450 g |
输入数据
| DC输入电压 | DC 24 V (-25 %/+35 %) |
|---|
输出数据
| 额定电压 | 24 Vdc |
|---|---|
| 调压范围 | 24 - 28 V |
| 输出电流范围 | 5 - 4.3 A |
| 输出电流 | 4.3 A 当 28 V |
| 5 A 当 24 V | |
| 输出功率 | 120 W |
| 功率储备 | 20 % 额外功率 |
| 降额 | 3 W/°C 为 >+60 °C |
| 电压纹波与噪声 最大值 | 50 mVpp |
概述
| 尺寸（宽x高x深） | 32 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 450 g |
| 安装方式 | DIN导轨 |
| 工作温度范围 | -25 °C 至 70 °C |
| 连接端子类型 | 弹压式接线端子 |
| 转换效率，典型值 | 90.2 % |
| 功率损耗，典型值 | 13,3 W |
| MTBF SN 29500 @ 40 °C (h) | 1048000 h |
| DC-OK信号 | 有 |
