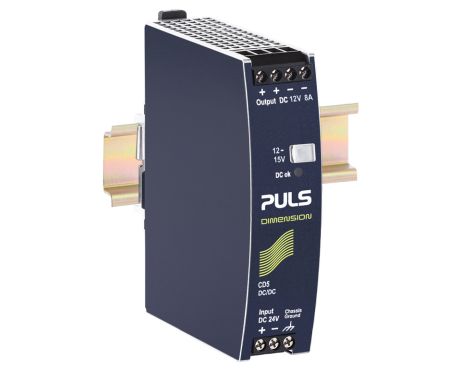

CD5.121
12 V, 8 A
DC 输出 | 12 - 15 Vdc |
---|---|
8 - 6.4 A | |
96 W | |
输入 | DC 24 V (-25 %/+35 %) |
尺寸(宽x高x深) | 32 x 124 x 102 mm |
重量 | 425 g |
输入数据
DC输入电压 | DC 24 V (-25 %/+35 %) |
---|
输出数据
额定电压 | 12 Vdc |
---|---|
调压范围 | 12 - 15 V |
输出电流范围 | 8 - 6.4 A |
输出电流 | 6.4 A 当 15 V |
8 A 当 12 V | |
输出功率 | 96 W |
功率储备 | 20 % 额外功率 |
降额 | 2.5 W/°C 为 >+60 °C |
电压纹波与噪声 最大值 | 75 mVpp |
概述
尺寸(宽x高x深) | 32 mm x 124 mm x 102 mm |
---|---|
Weight per unit (excl. packaging) | 425 g |
安装方式 | DIN导轨 |
工作温度范围 | -25 °C 至 70 °C |
连接端子类型 | 螺丝式接线端子 |
转换效率,典型值 | 88.2 % |
功率损耗,典型值 | 12.8 W |
MTBF SN 29500 @ 40 °C (h) | 1161000 h |
