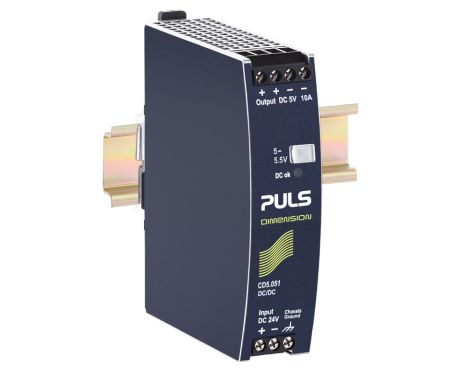

CD5.051

直流/直流转换器
5 V, 10 A
数据表
DC 输出 5 - 5.5 Vdc
10 - 10 A
50 W
输入 DC 18 V - 32.4 V
尺寸(宽x高x深) 32 x 124 x 102 mm
重量 425 g
对比

输入数据

DC输入电压 DC 18 V - 32.4 V

输出数据

额定电压 5 Vdc
调压范围 5 - 5.5 V
输出电流范围 10 - 10 A
输出电流 10 A 当 5.5 V
10 A 当 5 V
输出功率 50 W
功率储备 20 % 额外功率
降额 1.25 W/°C 为 +60 to +70 °C
电压纹波与噪声 最大值 50 mVpp

概述

尺寸(宽x高x深) 32 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 425 g
安装方式 DIN导轨
工作温度范围 -25 °C 至 70 °C
连接端子类型 螺丝式接线端子
转换效率,典型值 81.5 %
功率损耗,典型值 11.5 W
